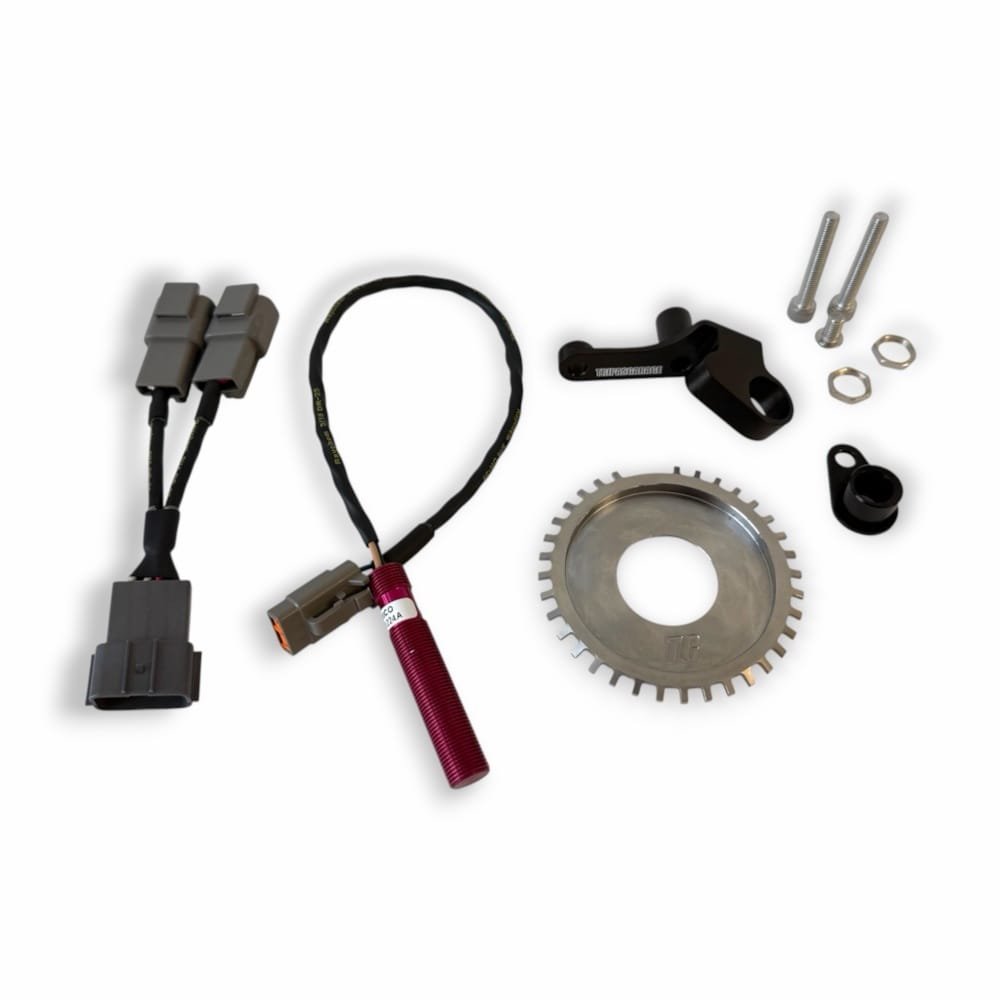

Nissan RB20 / RB25 / RB26 36-2 Crank Trigger Kit

Modernize Your RB Trigger System

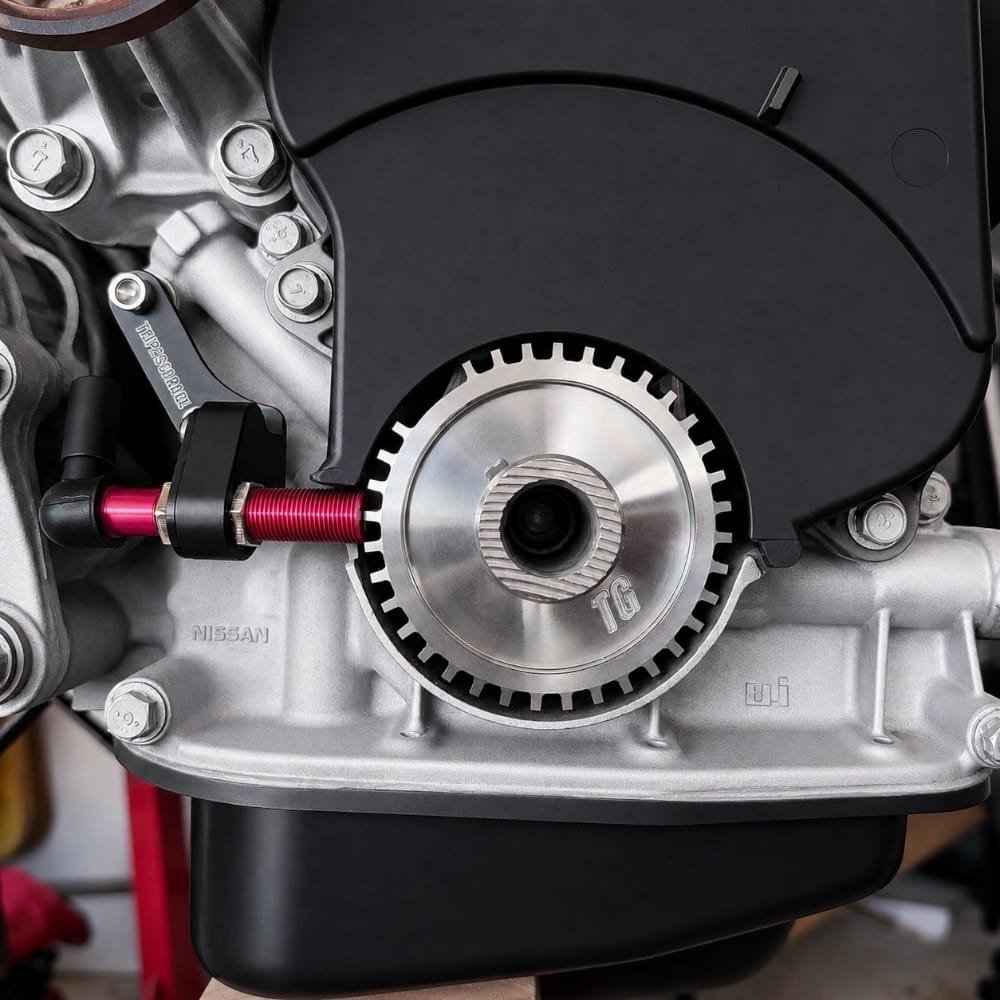

The factory CAS on Nissan RB engines has been in service for decades. Our 36-2 Crank Trigger Kit moves the primary engine position signal directly to the crankshaft, providing your aftermarket ECU with a clean and accurate crank position reference.

Designed for RB20DET, RB25DET, and RB26DETT engines, this kit is an ideal upgrade for standalone ECU installations, engine swaps, and high-performance RB builds.

Plug-and-Play Wiring

We’ve taken the guesswork out of wiring your new crank trigger.

Every kit includes a pre-built interface harness that connects the crank trigger system to the vehicle’s existing wiring, eliminating the need to build your own harness or figure out individual wiring connections.

Select your RB engine configuration when ordering and we’ll provide the correct wiring configuration for your application.

Why 36-2?

A missing-tooth 36-2 trigger pattern provides the ECU with precise crankshaft position and engine speed information without relying on the aging factory CAS for the primary trigger signal.

The result is a clean, modern crank trigger solution that’s easy to integrate with many aftermarket ECUs.

Important

• This is the 36-2 crank trigger portion only.
• This kit eliminates the factory CAS as the primary engine trigger

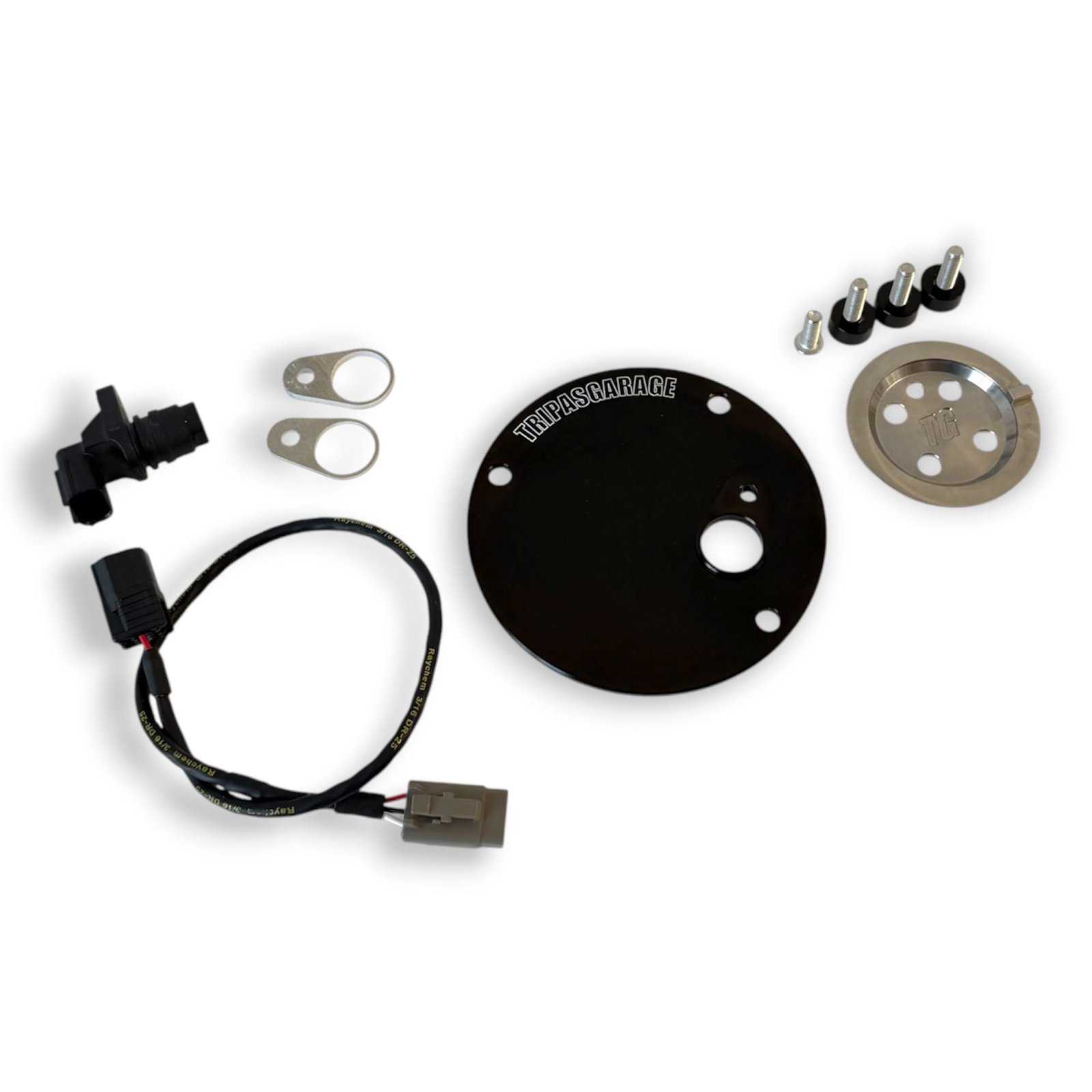

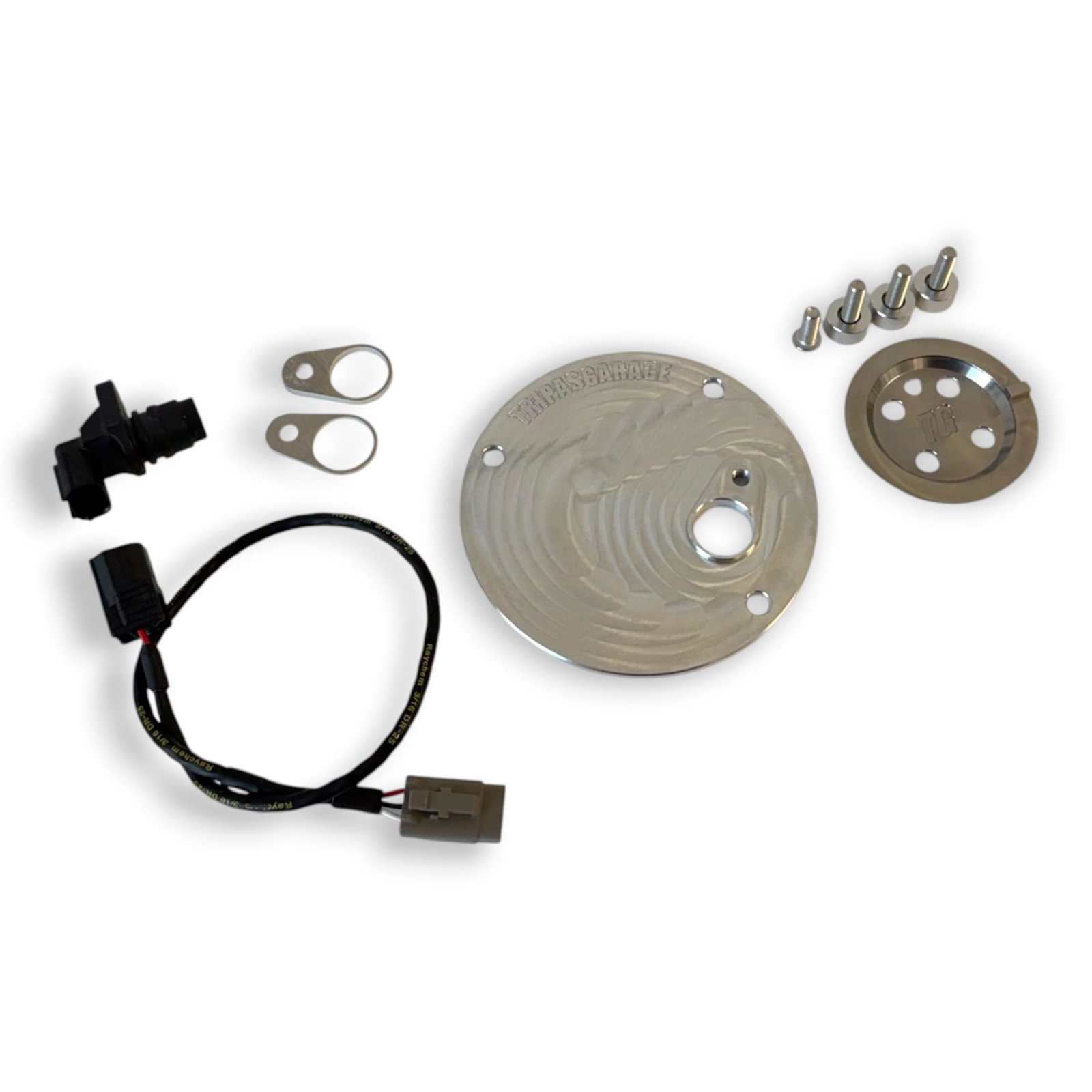

• The optional Single-Tooth CAS Home/Sync Upgrade will be available separately for customers who want full sequential operation
• The Home/Sync upgrade can be added later without replacing the 36-2 crank trigger system
